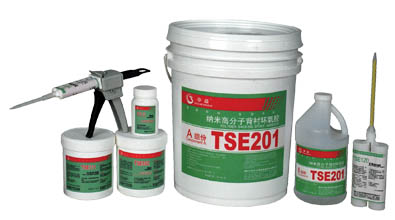

| Tightsen epoxy adhesives are widely used for bonding metals, ceramics, woods, glass and some plastics etc.. Can be used for structural bonding, encapsulating parts, with high strength and volume unshrinking characters. |
| Epoxy structural adhesive series |
|
|
|
TSE120 Epoxy structural adhesive
▲High impact and high peel strength and excellent mechanical and electric insulation characters.
▲Bond dissimilar materials including aluminum, steel, and other metals, as well as a variety of plastics and ceramics. |
|
TSE301 Epoxy structural adhesive
▲Fast curing.
▲For bonding metal, plastic, wood etc..
▲High strength, resistant to impact and peel-off. |
|
TSE302 Epoxy structural adhesive
▲Fast cure speed, high bonding strength.
▲Not to corrosive pipe fitting, resistant to solvent and medium.
▲For bonding metal, ceramics, concrete and glass etc.. |
|
TSE310 Epoxy structural adhesive
▲One compenent, heat cure, low viscosity, good flowable.
▲Can be used for structural bonding metals, ceramics, glass and encapsulating some small electric parts. |
|
TSE311 Epoxy structural adhesive
▲One compenent, high temperature cure, high bonding strength,easy to use, widely applicability.
▲Can be used for structural bonding metals, ceramics, and glass etc.. |
|
|
| |
|
|
| Underfill adhesive |
|
|
|
TSE3513 Underfill adhesive
▲Reworkable underfill for CSP (FBGA) or BGA. Dispense product at moderate speed .Ensure that needle tip is about 0.025mm.
▲It is designed to give excellent protection from failure due to mechanical stress,include: hand dispense and notebook PC. The low viscosity allows filling in gaps under CSP or BGA. |
|
|
| |
|
|
| Polymer backing adhesive series |
|
|
TS 3495 Epoxy backing adhesive
▲ 100% two components epoxy resin formulated for maximum protection and positive support of wear lines of cone crushers, gyratory crushers.
▲Melting or special equipment are non-needed in application.
▲Low volume shrinking, eliminates gaps between liners.
▲Easy and safe mixing and using.
TS 3497 Cement road repairing adhesives
▲A unique, two-component, rapid setting concrete repair and grouting system that outperforms conventional concrete repairs.
▲Not shrink at any actual circumstances temperature, resistant to freeze, melting and melting of ice or salt. Typically used for the repair of concrete highway walls, pot holes, airport runways, anchoring machinery. For business, it can be used for refrigerating floors, loading docks, grouting bedplates and soleplates, deck and bridging and anchoring bolts and handrails.
|
|
TS 3496 Modified resin backing adhesive
▲Two components modified resin curing at room temperature. Pour mixed material into cavities between backing and liners or support structure to achieve no gap filling and bonding.
▲Fast curing, a strongly support the cone and liner after curing , high impact and shock resistance.
▲ It is convenient and fast to use, with long working period and high efficiency.
▲Used for spring and hydraulic cone crusher cone and gyratory crusher,filling the gap between liner and cone; Also can be used for equipment stand leveling. Mainly used for mining and electricity industries.
|
| |
|
|
| Epoxy encapsulant adhesive |
|
|
|
TSE501 Epoxy encapsulant adhesive
▲Better flowable, high bonding strength, easy to use and excellent electricity capability.
▲Can encapsulate capacitance, transformer, amplifier, relay etc..
TSE 503 Electron epoxy encapsulant adhesive
▲ Two-component epoxy adhesive, better flowable, high bonding strength, good leveling, easy to use.
▲ Can encapsulate metallized film capacitor and mutual inductance pulse ignition etc.. |
|
TSE502 Epoxy encapsulant adhesive
▲Better flowable, high bonding strength, easy to use and excellent electricity capability.
▲Can encapsulate capacitance, transformer, amplifier, relay etc..
TSE 504 Electron epoxy encapsulant adhesive
▲ Two-component epoxy adhesive, better flowable, high bonding strength, good leveling, easy to use.
▲ Can encapsulate metallized film capacitor and mutual inductance pulse ignition etc.. |
|
TSE506 Epoxy encapsulant adhesive
▲Better flowable, high bonding strength, easy to use and excellent electricity capability.
▲Can encapsulate capacitance, transformer, amplifier, relay etc.. |
|
|
 Technical Specification
|
Products |
Container |
Color |
Viscosity(mPa.S) |
Mix ratio(by weight) |
Operation time |
Full cure time |
Tensile shear strength (MPa) |
Compress strength(MPa) |
Hardness (Shore D) |
|
TS3495 |
10kg/20kg |
Red |
40000～70000 |
100:6 |
|
24hrs |
≥12 |
/ |
75～90 |
|
TS3496 |
10kg/20kg |
Grey |
30000～60000 |
100:0.5 |
|
24hrs |
≥12 |
/ |
75～90 |
|
TS3497 |
10kg/20kg |
Grey |
30000～60000 |
100:1 |
15～22min |
24hrs |
≥13 |
/ |
75～90 |
|
TSE120 |
1kg |
Yellowish |
20000～40000 |
2:1 |
≥3hrs(500g) |
24hrs |
15～25 |
/ |
75～85 |
|
TSE301 |
50g |
Yellowish |
40000～60000 |
1:1 |
3min(20g) |
24hrs |
12～25 |
97 |
75～80 |
|
TSE302 |
50g |
White |
20000～30000 |
1:1 |
15min(100g) |
24hrs |
14～25 |
/ |
80～85 |
|
TSE310 |
500g/1kg |
Green |
20000～30000 |
/ |
/ |
|
12～18 |
9～11 |
75～85 |
|
TSE311 |
500g/1kg |
Grey |
30000～50000 |
/ |
/ |
|
12～15 |
9~11 |
75～85 |
|
TSE501 |
1kg |
Black |
2000～4000 |
4:1 |
50min(100g) |
12hrs |
12～20 |
11 |
80-85 |
|
TSE502 |
1kg |
Black |
6000 ～8000 |
4:1 |
≥2hrs(100g) |
24hrs |
11～15 |
10~13 |
80-85 |
|
TSE503 |
1kg |
Yellow |
6000～15000 |
3:1 |
|
24hrs |
10～20 |
11～13 |
75～80 |
|
TSE504 |
1kg |
Yellow |
6000～15000 |
3:1 |
|
24hrs |
10～20 |
11～13 |
75～80 |
|
TSE506 |
1kg |
White |
1000～1500 |
3:1 |
≥80min (100g) |
24hrs |
11～15 |
10～13 |
80～85 |
|
TSE3513 |
1kg |
Yellowish |
9000～14000 |
/ |
/ |
|
13～25 |
/ |
80～85 |
|
|
|
|
|
