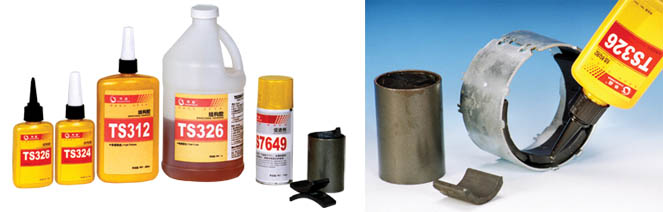

Tightsen structural adhesives have excellent tensile, shear and peel strength combined with maximum impact, stress and vibration resistance. Mainly used for bonding metals, glass, ceramics, ferrites and so on. |
TS312 Structural adhesive
Fast fixture
▲Low viscosity, high strength, resistant to impact, vibration and solvent.
▲Fast curing, gaps fill up to 0.13mm.
▲For bonding metals, glass, ceramics where fast fixturing is required between close fitting parts
|
|
TS319 Structural adhesive
General purpose
▲Low viscosity, good flowable, fast curing, solvent resistance.
▲Suitable for rigid materials (e.g. metals, glass, ceramics and so on). |
TS324 Structural adhesive
Impact resistance
▲Bonding most materials, can be used with activator TS7649.
▲Suitable for larger gap fill.
▲Rigid, flexible,excellent solvent resistance.
|
|
TS326 Structural adhesive
Fast curing
▲Bonding rigid materials, e.g. bonding ferrites to plated materials in electric motors, loudspeakers etc.. Can be used with activator.
|
 Technical Specification
|
Product |
Container |
Color |
Viscosity(mPa.s) |
Gap fill(mm) |
Temperature range(℃) |
Fixture time/full cure time |
Tensile shear strength(N/mm2) |
|
TS312 |
50ml
250ml |
Amber |
500～1200 |
0.13 |
-50-120 |
5min/24hrs |
10～17 |
|
TS319 |
50ml
250ml |
|
2100～3500 |
0.25 |
-50-120 |
1min/12hrs |
5～12 |
|
TS324 |
50ml
250ml |
|
10000～20000 |
0.50 |
-50-120 |
5min/24hrs |
11～19 |
|
TS326 |
50ml
250ml |
|
15000～20000 |
0.50 |
-50-120 |
2min/12hrs |
12～25 |
|
